J. A. ROBY | Model #PBVEC

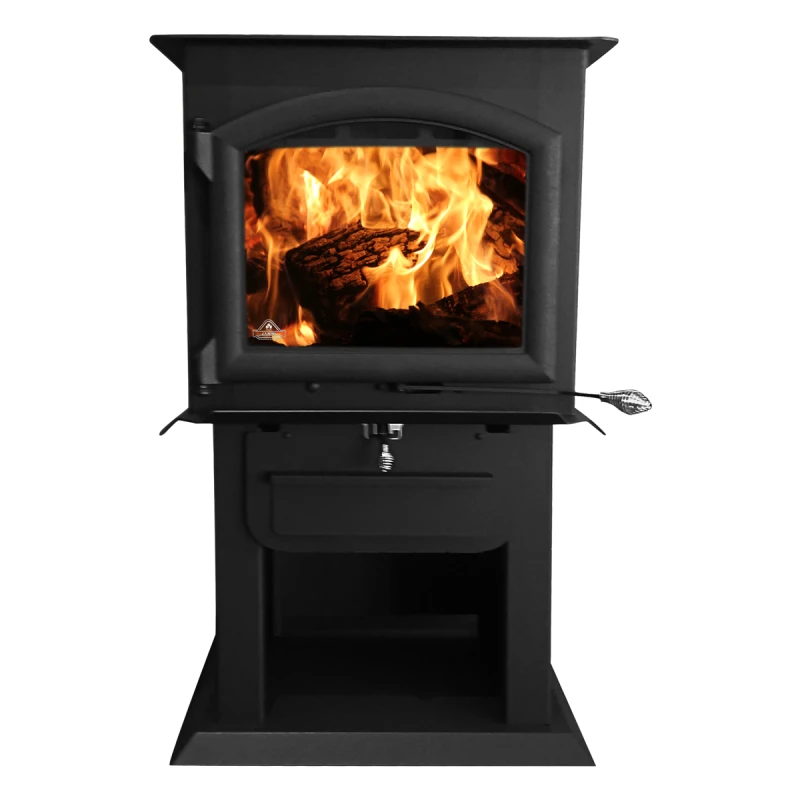

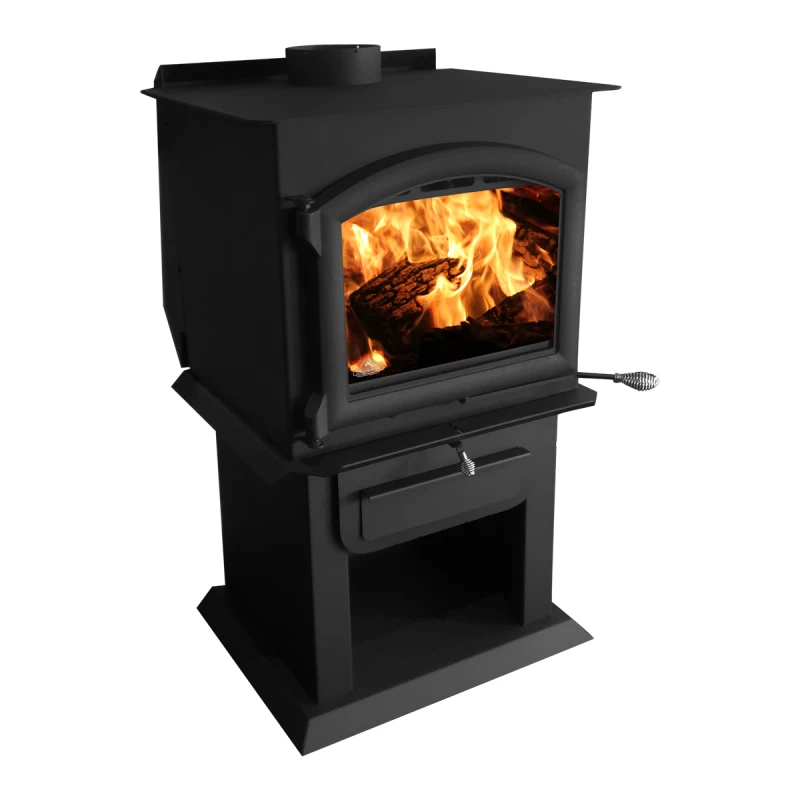

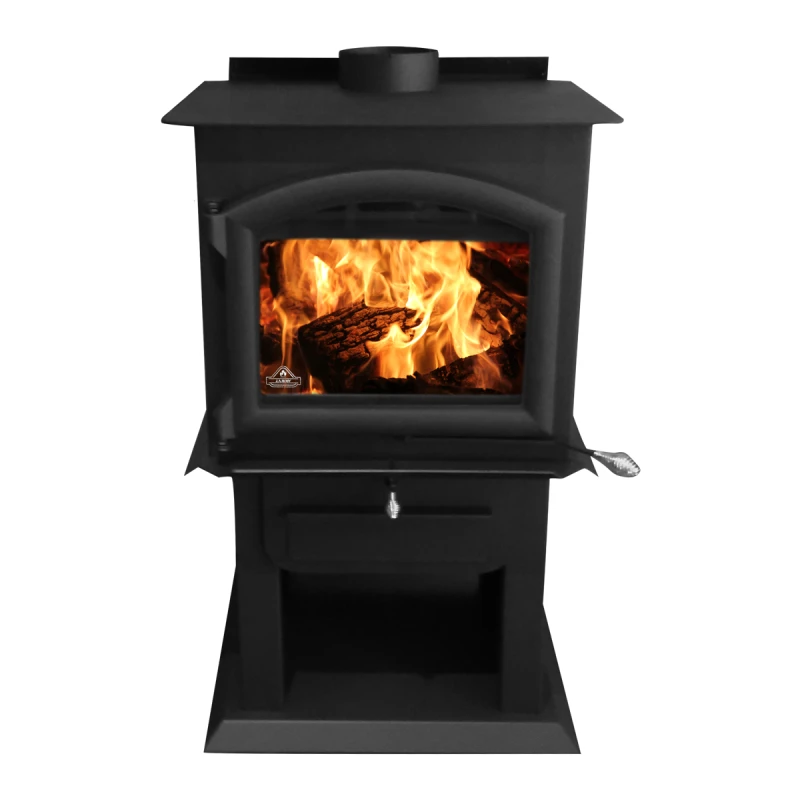

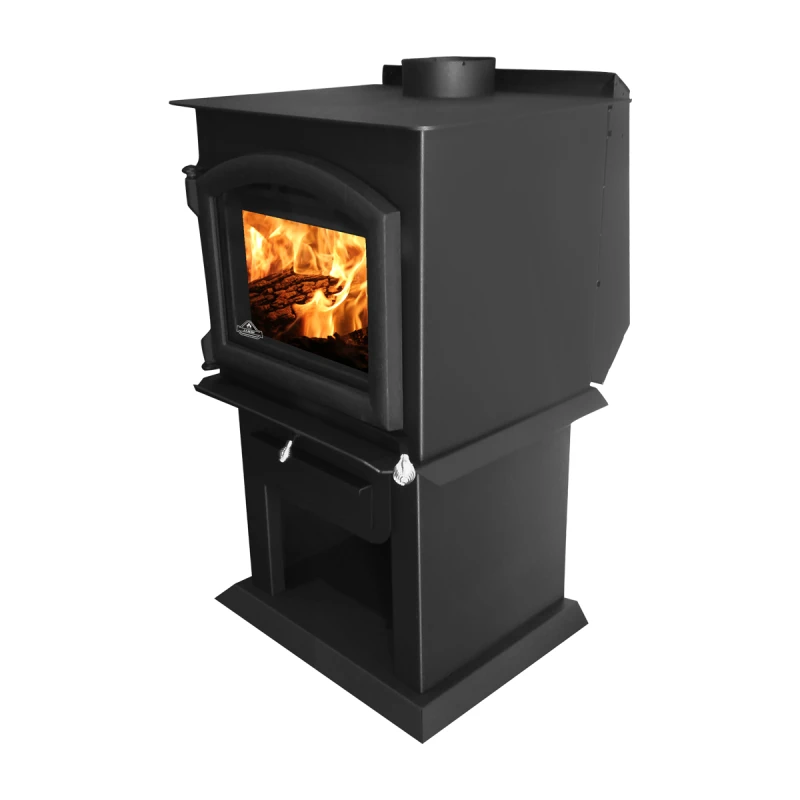

VEGA CLASSIC

VEGA CLASSIC, US EPA 2020 Method 28R and CSA B415.1-10 certified, the new wood burning appliance, is part of to the new series “ETOILE” produced in Quebec by J. A. ROBY. This is a powerful, compact and ecological model. In addition, it is certified for mobile homes. VEGA CLASSIC is designed with small dimensions but it has a surprisingly heating capacity. The VEGA also features a tested and certified space for secure wood storage under the appliance.

Heats 500 - 1,800 ft²
Output 70,000 BTU
Burn time 3 - 8 hrs
Type of fuelWood
Recommended heating area500 - 1800 pi²
Combustion length3 to 8 hours
Maximum output70 000 BTU
Firebox dimensionsWidth 18 ¼" / Height 10 5/16" / Depth 14 5/16"
Door opening dimensions15 ½" x 9"
Maximum log length18"
Exteriors dimensionsWidth 26 7/8" / Height 41.3" / Depth 25 ½"
Type of chimney2100° F.
Exaust pipe diameter6"
Recommended chimney diameter6"
Minimum chimney height12'
Minimum clearances to combustiblesBack 10" / Side 20" / Corner 8" / Top 84" (measured from floor)
Weight297 lbs
Standard test - US emissionsEPA NSPS 2020
Standard test - Canada emissionsCSA B415.1-10
Standard test - safetyULC S627-21 UL 1482-2011
WarrantyLimited lifetime

MSRP : DETAILS IN STORE

Certifications

Share the product

Facebook
Email
J. A. ROBY INC.
490, rue de l'Argon
Québec, Qc Canada G2N 2C9
T. (418) 849-8095 | F. (418) 849-0077

FEATURES

  • US EPA 2020 Method 28R and CSA B415.1-10 certified appliance
  • One arched cast iron door model
  • Recommended heating area (sq.ft.) 500 – 1800
  • Color: Metallic black
  • Model: Pedestal
  • Heating by radiation
  • Glass air-wash system
  • Easy access ash drawer
  • Wood storage area under the stove tested and certified
  • Low clearances to combustibles materials
  • Baffle: Ceramic fiber
  • Outdoor air intake
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Recommended chimney: 6″
  • Low emissions 1.43 g/h
  • Log length 18″ (lateral)
  • Mobile home approved
  • Tested as per applicalbe standards by Intertek

Options

  • Two fans (150CFM together) and 1 thermodisc kit (VENT)

Description

FEATURES

  • US EPA 2020 Method 28R and CSA B415.1-10 certified appliance
  • One arched cast iron door model
  • Recommended heating area (sq.ft.) 500 – 1800
  • Color: Metallic black
  • Model: Pedestal
  • Heating by radiation
  • Glass air-wash system
  • Easy access ash drawer
  • Wood storage area under the stove tested and certified
  • Low clearances to combustibles materials
  • Baffle: Ceramic fiber
  • Outdoor air intake
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Recommended chimney: 6″
  • Low emissions 1.43 g/h
  • Log length 18″ (lateral)
  • Mobile home approved
  • Tested as per applicalbe standards by Intertek

Options

  • Two fans (150CFM together) and 1 thermodisc kit (VENT)
