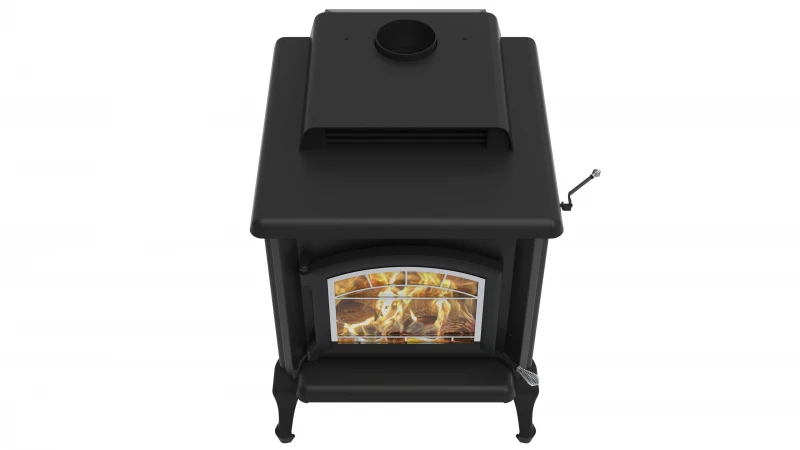

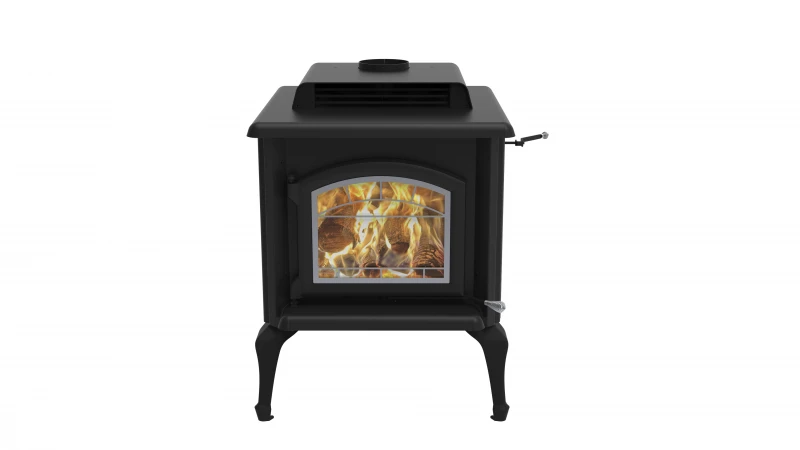

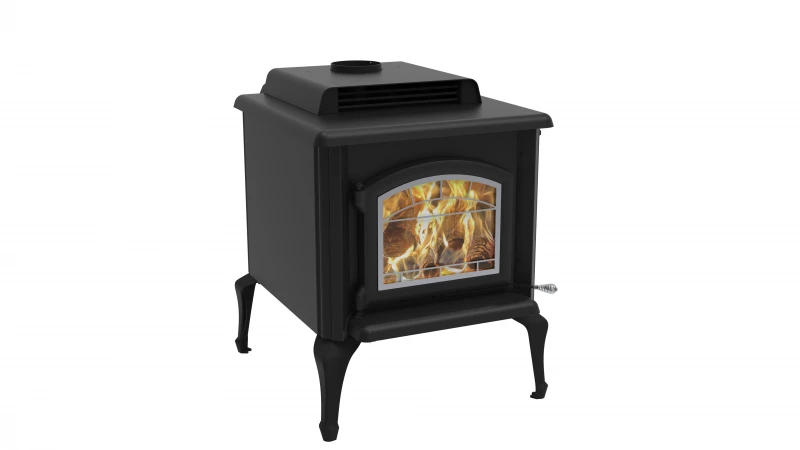

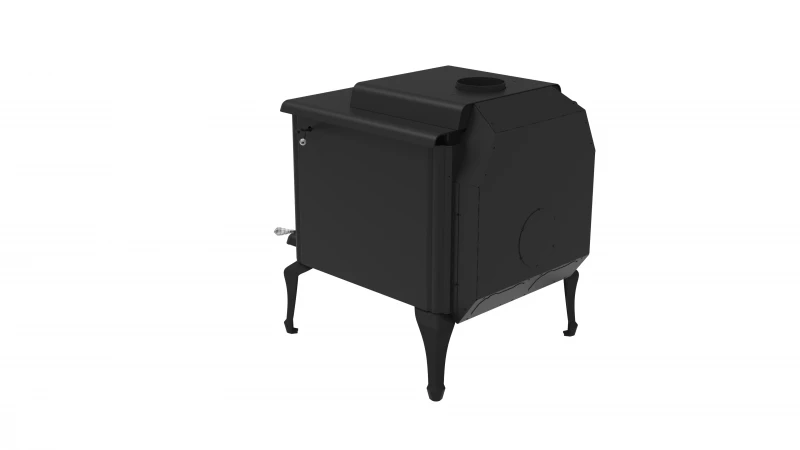

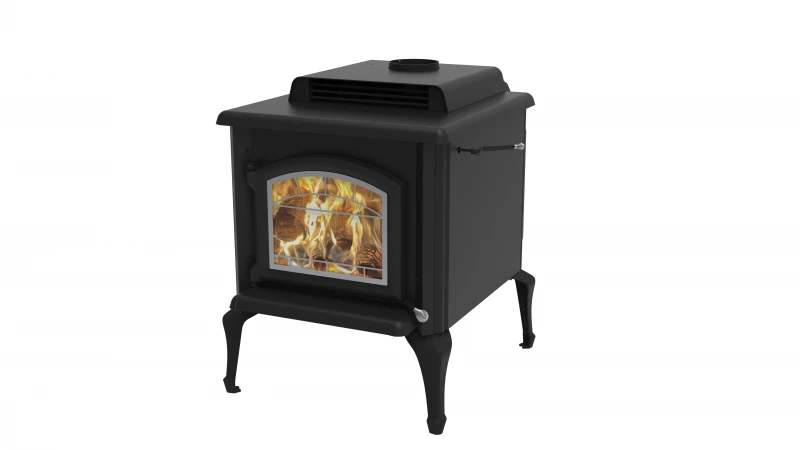

J. A. ROBY | Model #PBULTTOR

ULTIMATE TOR

BMR Exclusive

Unmatched performance!

The ULTIMATE TOR, BMR exclusive, has a combustion chamber of 4.7ft³ and accepts 24″ wood logs. It can easily warm up a house from 1,200 to 3,800 ft² and offers a heating capacity up to 120 000 BTU. Combining with the VENT460TOR (sold separately) allows the distribution of heat even more efficiently in a large room.

Heats 1,200 - 3,800 ft²
Output 120,000 BTU
Burn time 4 - 18 hrs
Type of fuelWood
Recommended heating area1200 - 3800 pi²
Combustion length4 to 18 hours
Maximum output120,000 BTU/h Dry cordwood
Firebox dimensionsWidth 19 ¾" / Height 15 ½" / Depth 24"
Maximum log length24"
Exteriors dimensionsWidth 29" / Height 37 13/16" / Depth 37 7/16"
Type of chimney2100° F. - 650° C
Exaust pipe diameter6"
Recommended chimney diameter6"
Minimum chimney height12'
Minimum clearances to combustiblesBack 10" / Lateral & corners 20" / Ceiling 84" (measured from floor)
Weight507 lbs
Standard test - Canada emissionsCSA B415.1-10
Standard test - safetyULC S627 / UL 1482
WarrantyLimited lifetime

MSRP : DETAILS IN STORE

Certifications

Share the product

Facebook
Email
J. A. ROBY INC.
490, rue de l'Argon
Québec, Qc Canada G2N 2C9
T. (418) 849-8095 | F. (418) 849-0077

FEATURES

  • One cast iron door model
  • High efficiency CSA B415.1-10 cerrified appliance
  • MONTREAL ISLAND APPROVED
  • Recommended heating area sqi²) : 1200 – 3800
  • 120,000 BTU (Dry cordwood)
  • Color: Metallic black
  • Model: Legs
  • Heating by convection and radiation
  • Glass air-wash system
  • Baffle: Fibre ceramic
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Heat distributor ready for VENT460TOR
  • Recommended chimney: 6″
  • Optimum efficiency 78%
  • Low emissions 1.30 g/h
  • Log lentht 24″
  • Tested as per applicable standards by intertek

Options

  • Two fans (150CFM together) and 1 thermodisc kit (VENT)
  • 460CFM blower with thermodisc and air deflector plate (VENT460TOR)

Description

FEATURES

  • One cast iron door model
  • High efficiency CSA B415.1-10 cerrified appliance
  • MONTREAL ISLAND APPROVED
  • Recommended heating area sqi²) : 1200 – 3800
  • 120,000 BTU (Dry cordwood)
  • Color: Metallic black
  • Model: Legs
  • Heating by convection and radiation
  • Glass air-wash system
  • Baffle: Fibre ceramic
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Heat distributor ready for VENT460TOR
  • Recommended chimney: 6″
  • Optimum efficiency 78%
  • Low emissions 1.30 g/h
  • Log lentht 24″
  • Tested as per applicable standards by intertek

Options

  • Two fans (150CFM together) and 1 thermodisc kit (VENT)
  • 460CFM blower with thermodisc and air deflector plate (VENT460TOR)
