J. A. ROBY | Model #PBMELX

MESSENGER LX

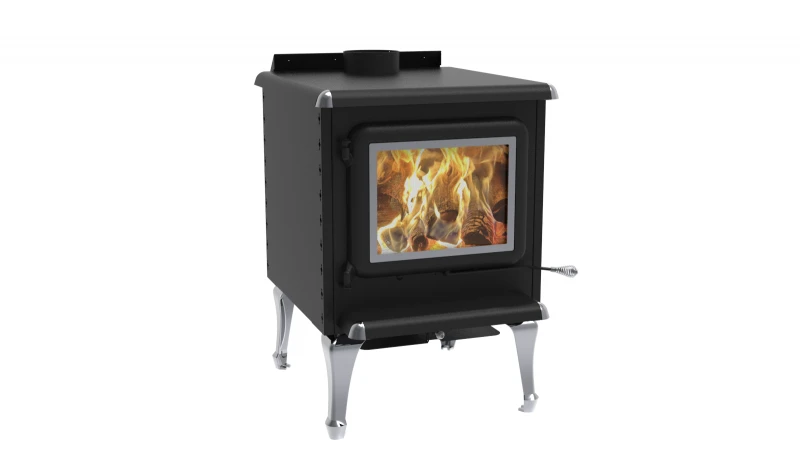

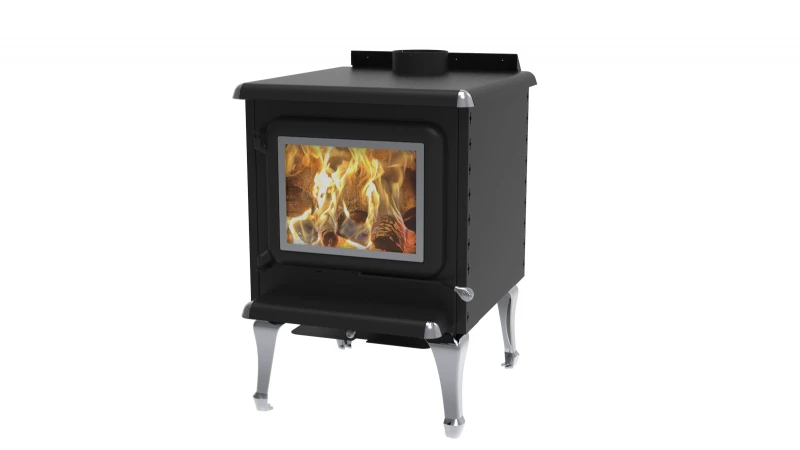

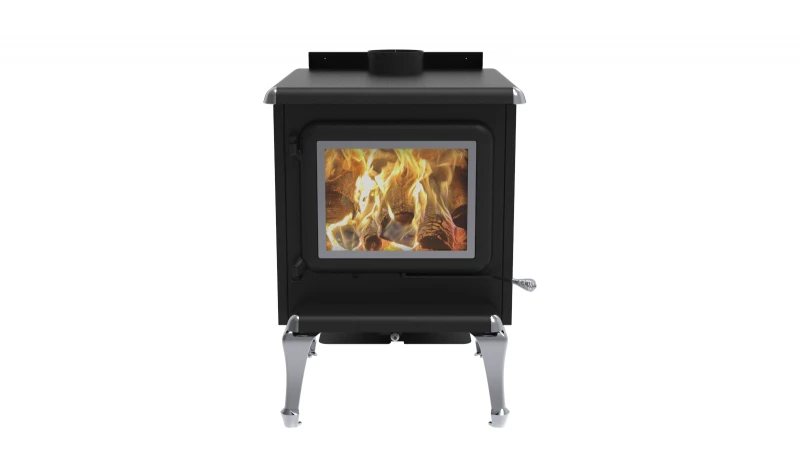

MESSENGER LX high efficiency wood stove

Heats 1,000 - 3,000 ft²
Output 100,000 BTU
Burn time 4 - 14 hrs
Type of fuelWood
Recommended heating area1,000 - 3,000 pi²
Combustion length4 to 14 hours
Maximum output100 000 BTU
Steady state77.75 %
Firebox dimensionsWidth 18" / Height 15 1/8" / Depth 22 ½"
Door opening dimensions15 1/8 x 9¼
Maximum log length22"
Exteriors dimensionsWidth 26" / Height 33 5/8" / Depth 33 5/8"
Type of chimney2100° F.
Exaust pipe diameter6"
Recommended chimney diameter6"
Minimum chimney height12'
Minimum clearances to combustiblesBack 11 ¼" / Side 16" / Corner 8 ¾" / Top 84" (measured from floor) / From collar to back 12" / From collar to side 24 ¾"
Weight360 lbs
Standard test - US emissionsUS EPA Method 28R
WarrantyLimited lifetime

MSRP : DETAILS IN STORE

Certifications

Share the product

Facebook
Email
J. A. ROBY INC.
490, rue de l'Argon
Québec, Qc Canada G2N 2C9
T. (418) 849-8095 | F. (418) 849-0077

FEATURES

  • One cast iron square door model
  • High efficiency US EPA NSPS 2020 certified
  • Recommended heating Area (sq.st.) 1,000 – 3,000
  • Color: metallic black
  • Model: Chromed legs
  • Corners,handle and chromed trim door
  • Convection and radiation heating
  • Self-cleaning system of the glass surface
  • Low clearances to combustibles materials
  • Ceramic wool baffle
  • Outdoor air intake
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Recommended chimney: 6″
  • Low emissions 1.56 gr/h
  • LHV 77,75%
  • Maximum Log lenght 22″
  • Mobile home certified
  • Tested as per applicable standards by Intertek

Options

  • Two fans (150CFM together) and 1 thermodisc kit (VENT)
  • Outdoor air intake package kit (ECPAE)
  • 150 CFM fan
  • 460 CFM blower (VENT460T+)
  • 460 CFM blower with thermodisc (VENT460TH)

Description

FEATURES

  • One cast iron square door model
  • High efficiency US EPA NSPS 2020 certified
  • Recommended heating Area (sq.st.) 1,000 – 3,000
  • Color: metallic black
  • Model: Chromed legs
  • Corners,handle and chromed trim door
  • Convection and radiation heating
  • Self-cleaning system of the glass surface
  • Low clearances to combustibles materials
  • Ceramic wool baffle
  • Outdoor air intake
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Recommended chimney: 6″
  • Low emissions 1.56 gr/h
  • LHV 77,75%
  • Maximum Log lenght 22″
  • Mobile home certified
  • Tested as per applicable standards by Intertek

Options

  • Two fans (150CFM together) and 1 thermodisc kit (VENT)
  • Outdoor air intake package kit (ECPAE)
  • 150 CFM fan
  • 460 CFM blower (VENT460T+)
  • 460 CFM blower with thermodisc (VENT460TH)
