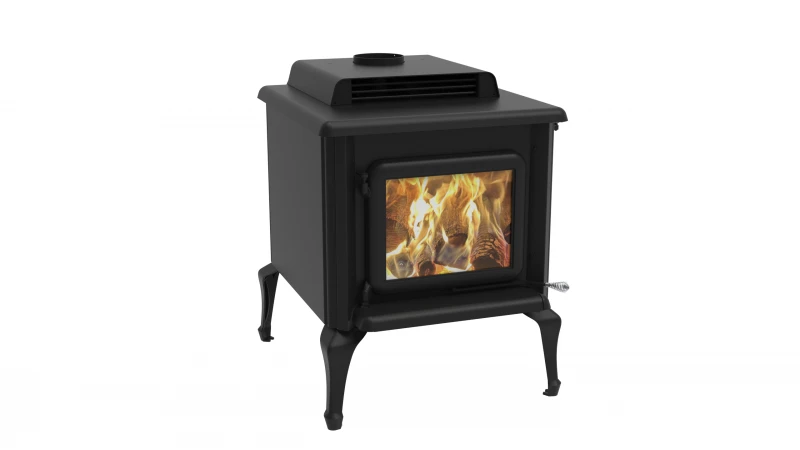

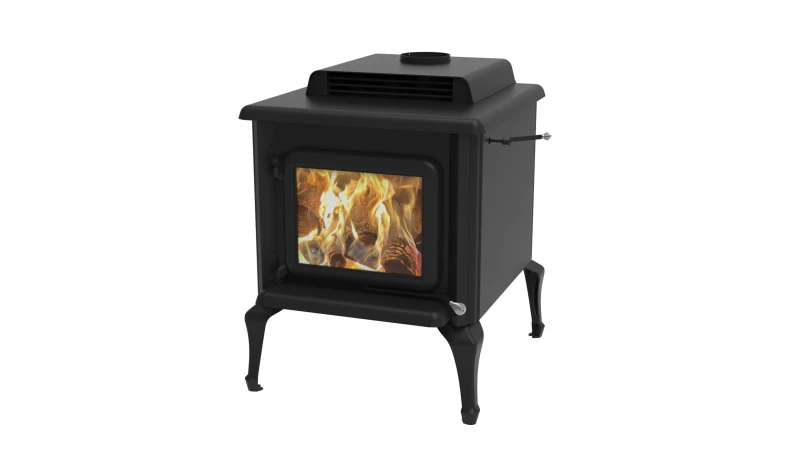

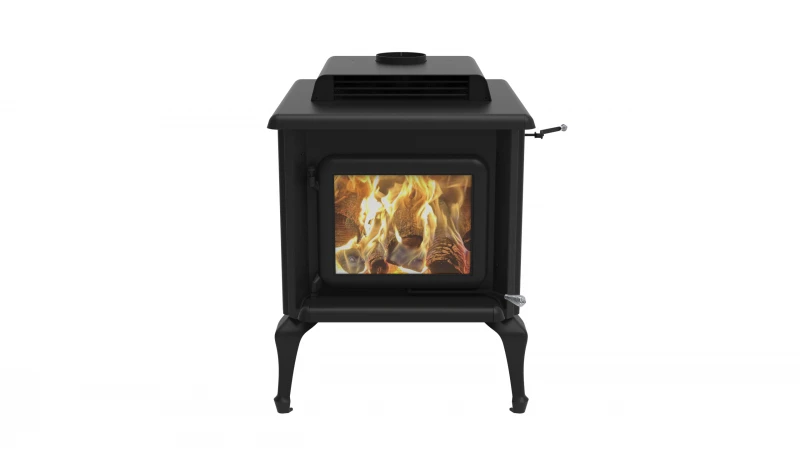

J. A. ROBY | Model #PBMAG

MAGNUM

UNMATCHED POWER!

The MAGNUM has a combustion chamber of 4.7 ft³ and its exterior dimension are 37 13/16” high by 29” wide by 37 7/16” depth and it easily accepts wood logs of 25”. Like the  ULTIMATE 2015, the MAGNUM has an unmatched power and  can easily warm up a house with a dimension  up to 3 800 ft². Fan kit is also available as an option.

Heats 1,200 - 3,800 ft²
Output 120,000 BTU
Burn time 4 - 18 hrs
Type of fuelWood
Recommended heating area1200 ft² - 3800 ft²
Combustion length4 to 18 hours
Maximum output120,000 BTU/h
Firebox dimensionsWidth 19 ¾" / Height 15 ½" / Depth 24"
Maximum log length24"
Exteriors dimensionsWidth 29" / Height 37 13/16" / Depth 37 7/16"
Exaust pipe diameter6"
Recommended chimney diameter6"
Minimum chimney height12'
Minimum clearances to combustiblesBack 10" / Lateral & corners 20" / Ceiling (measured from floor) 84"
Weight507 lbs
Standard test - Canada emissionsCSA B415.1-10
Standard test - safetyULC S627 / UL 1482
WarrantyLimited lifetime

MSRP : DETAILS IN STORE

Certifications

Share the product

Facebook
Email
J. A. ROBY INC.
490, rue de l'Argon
Québec, Qc Canada G2N 2C9
T. (418) 849-8095 | F. (418) 849-0077

Features

  • One cast iron door model
  • High efficiency CSA B415.1-10 certified appliance
  • MONTREAL ISLAND APPROVED
  • Recommended Heating Area (sq.ft) : 1200 – 3800
  • 120,000 BTU (Dry cordwood)
  • Color : Metallic black
  • Model : Legs
  • Heating by convection and radiation
  • Glass air-wash system
  • Baffle : Fibre ceramic
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Recommended chimney : 6’’
  • Optimum efficiency 78%
  • Low emissions 2,4 g/h
  • Log lenght 25’’
  • Tested as per applicable standards by Intertek

Options

  • Adapter of two 6″ ducts, 460 CFM blower and thermodisc kit (VENTULT)
  • Two fans (150CFM together) and 1 thermodisc kit (VENT)
  • Chrome trim door (B-MPCH)
  • Chrome cast iron legs

Description

Features

  • One cast iron door model
  • High efficiency CSA B415.1-10 certified appliance
  • MONTREAL ISLAND APPROVED
  • Recommended Heating Area (sq.ft) : 1200 – 3800
  • 120,000 BTU (Dry cordwood)
  • Color : Metallic black
  • Model : Legs
  • Heating by convection and radiation
  • Glass air-wash system
  • Baffle : Fibre ceramic
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Recommended chimney : 6’’
  • Optimum efficiency 78%
  • Low emissions 2,4 g/h
  • Log lenght 25’’
  • Tested as per applicable standards by Intertek

Options

  • Adapter of two 6″ ducts, 460 CFM blower and thermodisc kit (VENTULT)
  • Two fans (150CFM together) and 1 thermodisc kit (VENT)
  • Chrome trim door (B-MPCH)
  • Chrome cast iron legs
