J. A. ROBY | Model #CUISINIEREHH

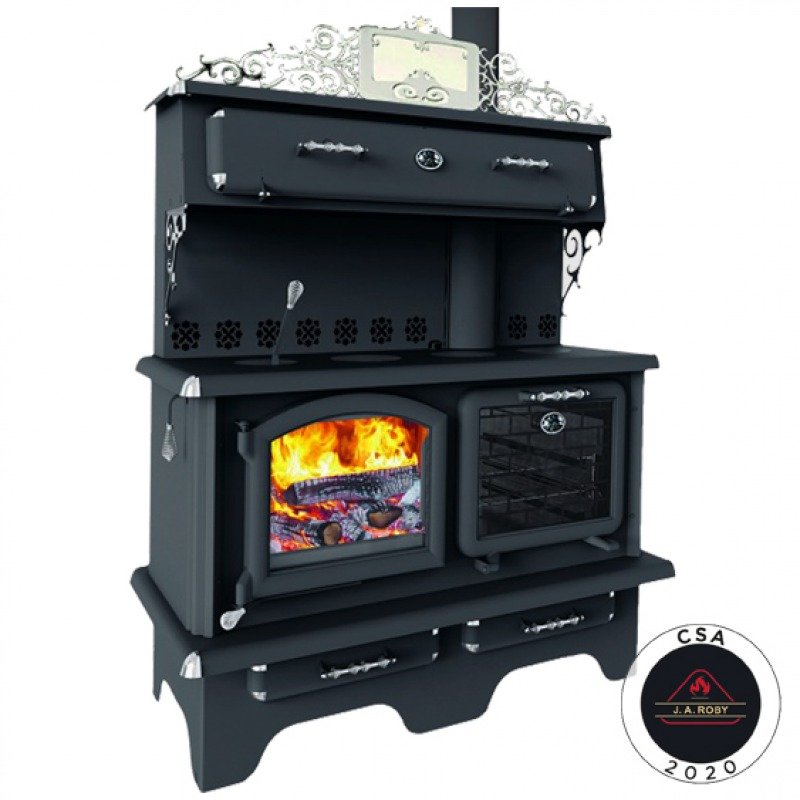

CUISINIERE HH

Exclusivité HOME HARDWARE Exclusive

In order to revive the great cookstoves of the past, we’ve recreated this newer version with the best design evoking the period of our ancestors. Like in the old days, warm up your home and enjoy one of your favorites foods cooked directly in the incorporated oven or keep your meal warm in the food warmer while you sip your cocktail. Moreover, this cookstove is environmentally friendly with an emission level as low as 1.02 g/h and an efficiency of 79,46 % (LHV); the results were obtain with official tests accordind to Canadian environmental standard CSA B415.1-10 (The Canadian equivalent of the U.S. EPA environmental standard).

Heats 1,500 - 2,300 ft²
Output 95,000 BTU
Burn time 3 - 5 hrs
Type of fuelWood
Recommended heating area1500 - 2300 pi²
Combustion length3 to 5 hours
Maximum output95,000 BTU Dry cordwood
Firebox dimensionsWidth 18-5/8" / Height 10-7/8" / Depth 20"
Door opening dimensions15-¾" x 10-¼"
Maximum log length19"
Exteriors dimensionsWidth 50-¼" / Height 64-¾" / Depth 28-½"
Type of chimney2100° F.
Exaust pipe diameter6"
Recommended chimney diameter6"
Minimum chimney height12'
Minimum clearances to combustiblesBack 12" / Lateral and corners 18" / Ceiling 84" (measured from floor)
Weight580 lbs
Interior food warmer dimensionWidth 46-1/8" / Height 10-1/8" / Depth 13-¾"
Interior oven dimensionWidth 17 1/8" / Height 14" / Depth 19-1/8" / Volume 2.66 cu.ft.
Standard test - Canada emissionsCSA B415.1-10
Standard test - safetyULC S627-00 / UL 1482-7
WarrantyLimited lifetime

MSRP : DETAILS IN STORE

Certifications

Share the product

Facebook
Email
J. A. ROBY INC.
490, rue de l'Argon
Québec, Qc Canada G2N 2C9
T. (418) 849-8095 | F. (418) 849-0077

Features

  • Model with two cast iron doors
  • High efficiency CSA B415.1-10 certified appliance
  • EPA Exempt certified
  • MONTREAL ISLAND APPROVED
  • Recommended Heating Area (sq.ft) : 1500 – 2300
  • Color: Metallic black
  • Model: Pedestal
  • Handles, corners and chrome ornaments
  • Decorative chrome and mirror top
  • Convection and radiation heating system
  • Glass air-wash system on firebox side
  • Easy to access ash drawer
  • Cooking area 16″ X 47″
  • Oven door with glass
  • Food warmer
  • Thermometers on oven and food warmer
  • Low clearance to combustible material
  • Baffle: Fibre ceramic
  • Outdoor air intake
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Recommended chimney: 6’’
  • Optimum efficiency 88%
  • Low emissions 1,02 g/h
  • LHV 79,46 %
  • Log lenght 19″
  • Tested as per applicable standards by Intertek

Options

  • Black enameled cast iron cooking plate, right (PLAQUECUID)
  • Black enameled cast iron cooking plate, left (PLAQUECUIG)
