J. A. ROBY | Model #PBANN

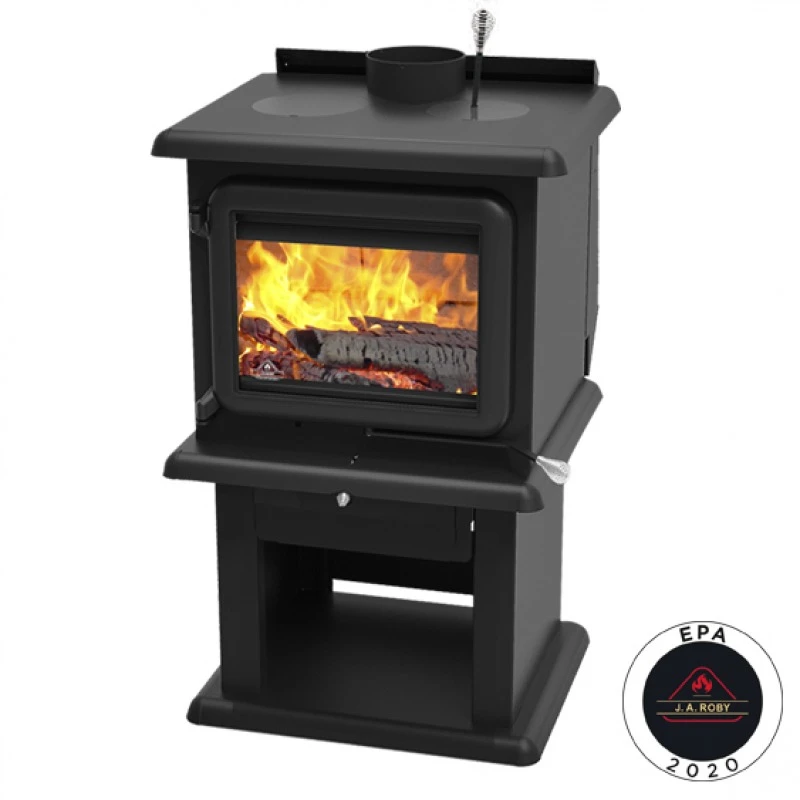

BLACK ANTARES

ANTARES US EPA 2020 Method 28R and CSA B415.1-10 certified, the new wood burning appliance is part of to the new series “ETOILE” produced in Quebec by J. A. ROBY. This is a powerful, compact and ecological model. For its style  and round shape, the ANTARES is more attractive than ever and it can be practically matched with any kind of decors. In addition, it is certified for mobile homes. ANTARES is designed with small dimensions but it has a surprisingly heating capacity. Just as wood stoves of past century, this model has removable covers for cooking. The ANTARES also features a tested and certified space for secure wood storage under the appliance.

Heats 500 - 1,800 ft²
Output 70,000 BTU
Burn time 3 - 8 hrs
Type of fuelWood
Recommended heating area500 - 1800 pi²
Combustion length3 to 8 hours
Maximum output70 000 BTU
Firebox dimensionsWidth 18 ¼" / Height 10 5/16" / Depth 14 5/16"
Door opening dimensions15 ½" x 9"
Maximum log length18"Lateral
Exteriors dimensionsWidth 26 7/8" / Height 41 3/8" / Depth 25 ½"
Type of chimney2100° F. - 650° C
Exaust pipe diameter6" - 15.24 cm
Recommended chimney diameter6" - 15.24 cm
Minimum chimney height12' - 3.66 m
Minimum clearances to combustiblesBack 10" / Side 20" / Corner 8"
Weight297 lbs
Standard test - US emissionsUS EPA 2020 Method 28R
Standard test - Canada emissionsCSA B415.1-10
Standard test - safetyULC S627-21 UL 1482-2011
WarrantyLimited lifetime

MSRP : DETAILS IN STORE

Certifications

Share the product

Facebook
Email
J. A. ROBY INC.
490, rue de l'Argon
Québec, Qc Canada G2N 2C9
T. (418) 849-8095 | F. (418) 849-0077

Features

  • US EPA 2020 Method 28R and CSA B415.1-10 certified appliance
  • One square cast iron door model
  • Recommended heating area (sq.ft.) 500 – 1800
  • Color: Metallic black
  • Model: Pedestal
  • Two removables lids with lid lifter for easy cooking on top
  • Wood storage area under the stove tested and certified
  • Two fans (75 CFM ea.) and one thermodisc kit
  • Heating by radiation
  • Glass air-wash system
  • Low clearances to combustibles materials
  • Baffle: Ceramic fiber
  • Outdoor air intake
  • Easy acces ash drawer
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Recommended chimney: 6″
  • Optimum efficiency 72,9%
  • Low emissions 1.43 g/h
  • Log length 18″ (lateral)
  • Mobile home approved
  • Tested as per applicable standards by Intertek

Options

  • Chrome corners (CC)
  • Chrome trim door (B-MPCH)
  • Black enameled cast iron cooking plate (PLAQUECUICR)
  • Chrome handles

Description

Features

  • US EPA 2020 Method 28R and CSA B415.1-10 certified appliance
  • One square cast iron door model
  • Recommended heating area (sq.ft.) 500 – 1800
  • Color: Metallic black
  • Model: Pedestal
  • Two removables lids with lid lifter for easy cooking on top
  • Wood storage area under the stove tested and certified
  • Two fans (75 CFM ea.) and one thermodisc kit
  • Heating by radiation
  • Glass air-wash system
  • Low clearances to combustibles materials
  • Baffle: Ceramic fiber
  • Outdoor air intake
  • Easy acces ash drawer
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Recommended chimney: 6″
  • Optimum efficiency 72,9%
  • Low emissions 1.43 g/h
  • Log length 18″ (lateral)
  • Mobile home approved
  • Tested as per applicable standards by Intertek

Options

  • Chrome corners (CC)
  • Chrome trim door (B-MPCH)
  • Black enameled cast iron cooking plate (PLAQUECUICR)
  • Chrome handles
