J. A. ROBY | Model #PBATM3

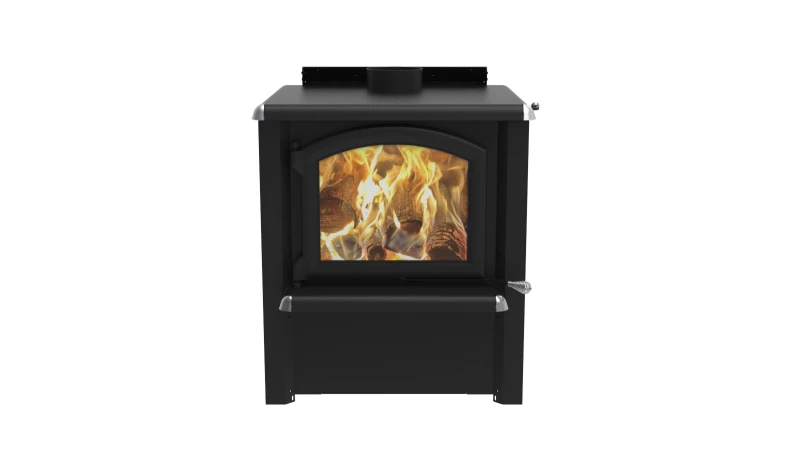

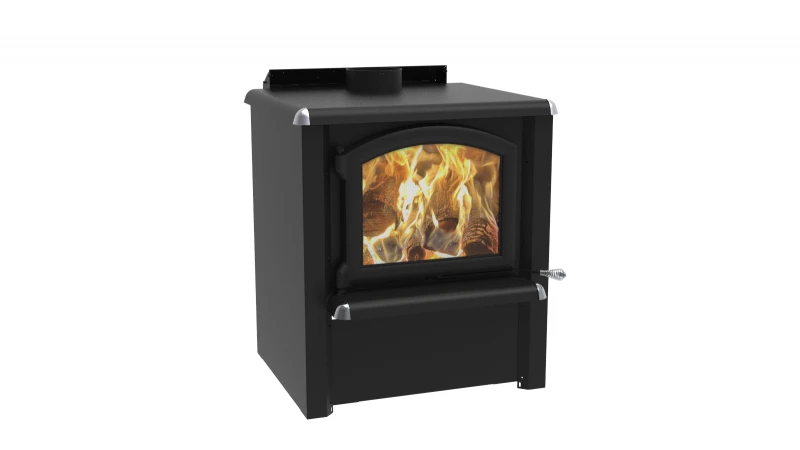

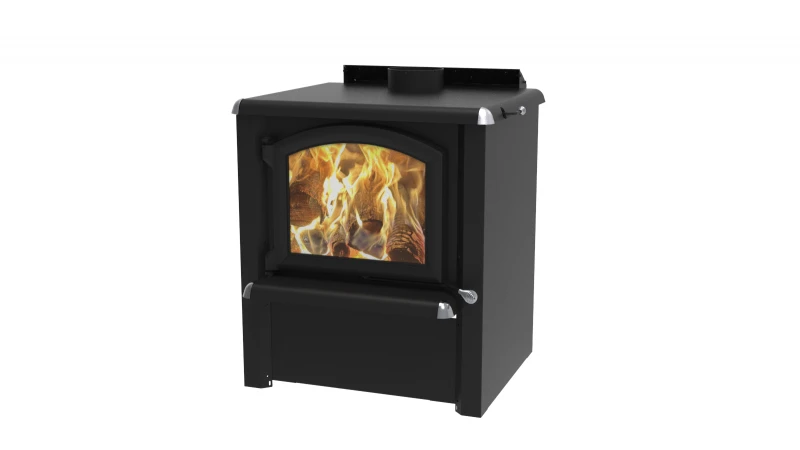

ATMOSPHÈRE 3.0

High-efficiency wood stove with a heat accumulator on top, distributing heat through the room and optimising capacity.

Heats 1,000 - 2,500 ft²
Output 95,000 BTU
Burn time 5 - 8 hrs
Type of fuelWood
Door opening dimensions16 ¼" x 10 3/8"
Maximum log length19"
Type of chimney2100° F.
Exaust pipe diameter6"
Recommended chimney diameter6"
Minimum chimney height12'
Weight380 lbs
Standard test - Canada emissionsCSA B415.1-10
WarrantyLimited lifetime

MSRP : DETAILS IN STORE

Certifications

Share the product

Facebook
Email
J. A. ROBY INC.
490, rue de l'Argon
Québec, Qc Canada G2N 2C9
T. (418) 849-8095 | F. (418) 849-0077

Features

  • High efficiency CSA B415.1-10 certified appliance
  • One cast iron door model
  • Recommended Heating Area (sq. ft.): 1 000 – 2 500
  • Color Metallic Black
  • Model : Freestanding
  • Heating by convection and radiation
  • Glass air-wash system
  • Low clearances to combustible materials
  • Baffle: Fibre ceramic
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Recommended chimney: 6”
  • Low emission 1,02 g/h
  • LHV 79.46%
  • Log lenght: 19”
  • Mobile home and Novoclimat approved, outdoor air intake required and offered in option
  • Tested as per applicable standards by Intertek

Options

  • Outdoor air intake package kit (ECPAE)
  • Black enameled cast iron cooking plate, right (PLAQUECUID)
  • Outdoor air intake (installed in plant) (TCPAE)
  • 150 CFM fan
  • 460 CFM blower with thermodisc (VENT460TH)
