J. A. ROBY | Model #PBATM3P

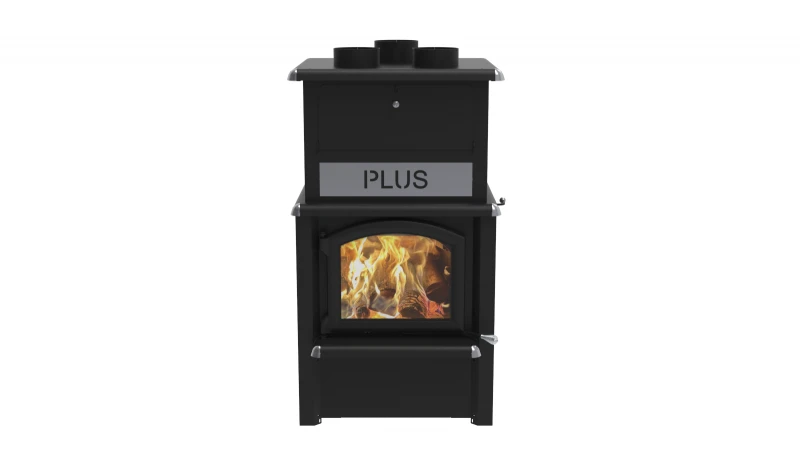

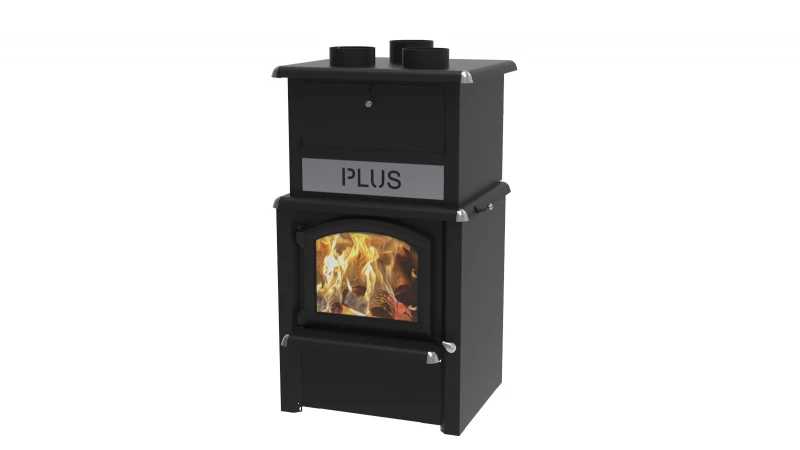

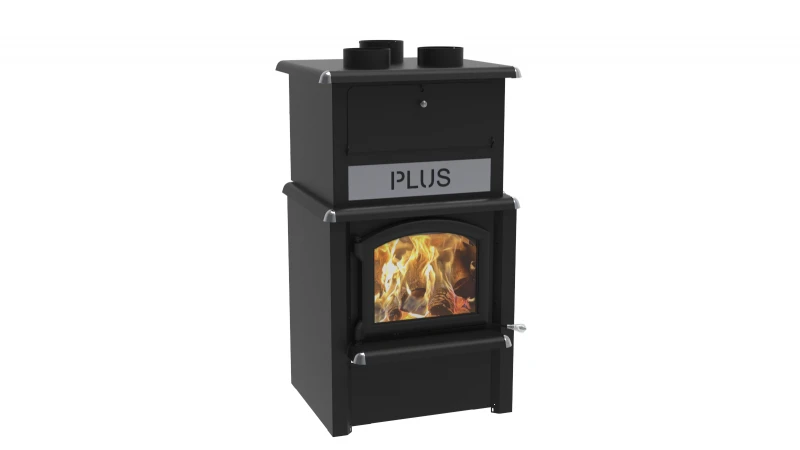

ATMOSPHÈRE 3.0 PLUS

What is the option ”PLUS”

The option ”PLUS” is designed to be used with the ATMOSPHERE 3.0 PLUS to enhance comfort in your home. This is an unique heat recovery system which increases the calorific value. Used with a 460 CFM blower, the option PLUS distributes the heat more effectively and increases the stove’s by 40%.

Heats 1,000 - 2,500 ft²
Output 95,000 BTU
Burn time 5 - 8 hrs
Type of fuelWood
Recommended heating area1000 - 2500 pi²
Combustion length5 to 8 hours
Maximum output95 000 BTU
Firebox dimensionsWidth 18 ¼" / Height 10 ¾" / Depth 20"
Door opening dimensions16 ¼" x 10 3/8"
Maximum log length19"
Exteriors dimensionsWidth 29 7/8" / Height 51 ¼" / Depth 31 7/8"
Type of chimney2100° F.
Exaust pipe diameter6"
Recommended chimney diameter6"
Minimum chimney height12'
Minimum clearances to combustiblesBack 16 ½" / Side 12" / Corner 10" / Top 84" (measured from floor)
Weight510 lbs
Standard test - Canada emissionsCSA B415.1-10
WarrantyLimited lifetime

MSRP : DETAILS IN STORE

Certifications

Share the product

Facebook
Email
J. A. ROBY INC.
490, rue de l'Argon
Québec, Qc Canada G2N 2C9
T. (418) 849-8095 | F. (418) 849-0077

Features

  • One cast iron arched door model
  • High efficiency CSA B415.1-10 certified appliance
  • Recommended heating area (sq. ft.) 1 000 – 2 500
  • Color: Metallic black
  • Model : Freestanding
  • Chromed handle and corners
  • Heat accumulator including 460 CFM blower and thermodisc
  • Convection and radiation heating
  • Glass air-wash system
  • Low clearances to combustible materials
  • Baffle: Fibre Ceramic
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Recommended chimney 6”
  • Low emissions 1.02 g/h
  • LHV 79.46%
  • Log lenght : 19”
  • Mobile home certified
  • Tested as per applicable standards by Intertek

Options

  • Outdoor air intake package kit (ECPAE)
  • Outdoor air intake (installed in plant) (TCPAE)
  • 460 CFM blower (VENT460T+)

Description

Features

  • One cast iron arched door model
  • High efficiency CSA B415.1-10 certified appliance
  • Recommended heating area (sq. ft.) 1 000 – 2 500
  • Color: Metallic black
  • Model : Freestanding
  • Chromed handle and corners
  • Heat accumulator including 460 CFM blower and thermodisc
  • Convection and radiation heating
  • Glass air-wash system
  • Low clearances to combustible materials
  • Baffle: Fibre Ceramic
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Recommended chimney 6”
  • Low emissions 1.02 g/h
  • LHV 79.46%
  • Log lenght : 19”
  • Mobile home certified
  • Tested as per applicable standards by Intertek

Options

  • Outdoor air intake package kit (ECPAE)
  • Outdoor air intake (installed in plant) (TCPAE)
  • 460 CFM blower (VENT460T+)
