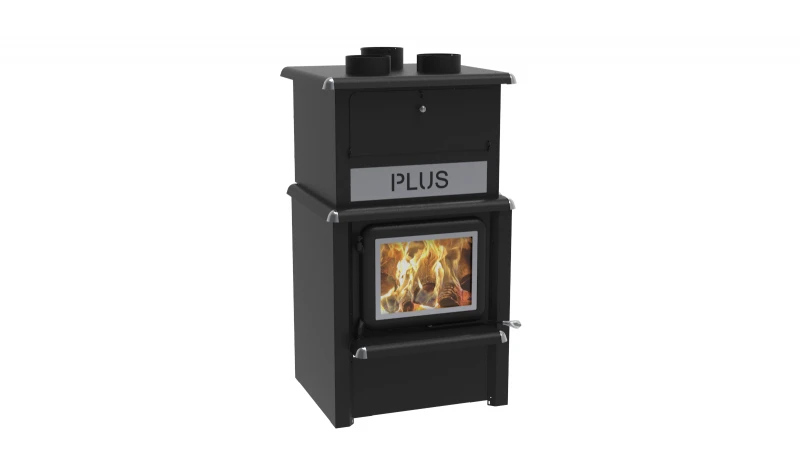

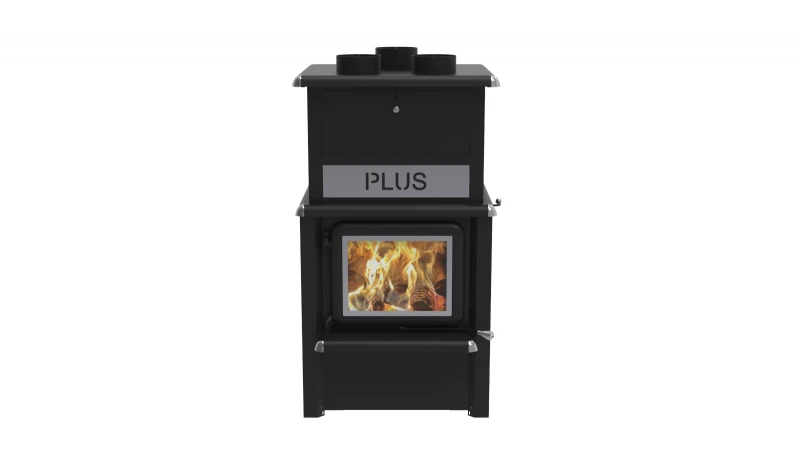

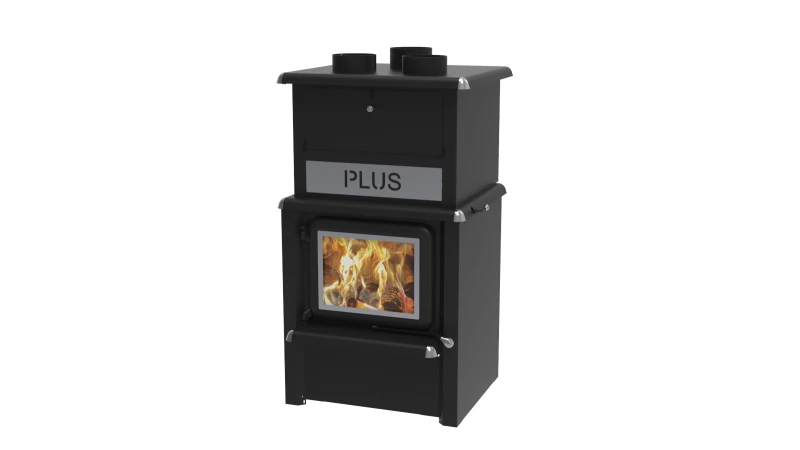

ATM 2500 PLUS LX

WHAT IS THE OPTION «PLUS»

The option «PLUS» is designed to be used with the ATM 2500 PLUS to enhance comfort in your home. This

is an unique heat recovery system which increases the calorific value. Used with a 460 CFM blower. The

option PLUS distributes the heat more effectively and increases the stove’s efficiency by 40%.

Heats 1,000 - 2,500 ft²

Output 95,000 BTU

Burn time 5 - 8 hrs

Type of fuel	Wood
Recommended heating area	1000 - 2500 pi²
Combustion length	5 to 8 hours
Maximum output	95 000 BTU
Firebox dimensions	Width 18 ¼" / Height 10 ¾" / Depth 20"
Door opening dimensions	16 ¼" x 10 3/8"
Maximum log length	19"
Exteriors dimensions	Width 29 7/8" / Height 51 ¼" / Depth 31 7/8"
Type of chimney	2100° F.
Exaust pipe diameter	6"
Recommended chimney diameter	6"
Minimum chimney height	12'
Minimum clearances to combustibles	Back 16 1/2" / Side 12" / Corner 10" / Top 84" (measured from floor)
Weight	510 lbs
Standard test - Canada emissions	CSA B415.1-10
Warranty	Limited lifetime

MSRP : DETAILS IN STORE

Certifications

J. A. ROBY INC.

490, rue de l'Argon

Québec, Qc Canada G2N 2C9

T. (418) 849-8095 | F. (418) 849-0077

High efficiency CSA B415.1-10 certified appliance
One square cast iron door model
Color: Metallic Black
Chromed corners, handle and trim door
Model: Freestanding
Recommended Heating Area (sq. ft.) 1 000 – 3 500
Heating by convection and radiation
Glass air-wash system
Low clearance to combustible materials
Baffle: Fibre ceramic
Firebox lined with refractory bricks for better heat distribution
Stainless steel secondary air system improving gas combustion
Recommended chimney: 6”
Low emission 1.02 g/h
LHV 79.46%
Log lenght 19”
Mobile home and Novoclimat approved outdoor air intake required and offered in option
Tested as per applicable standards by Intertek
