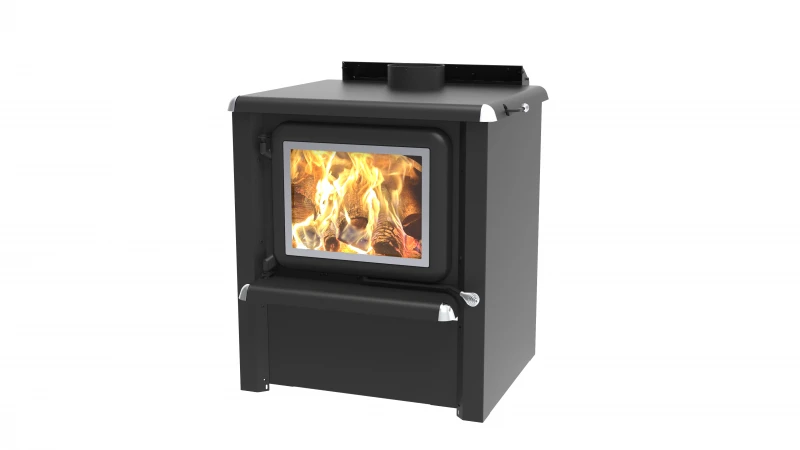

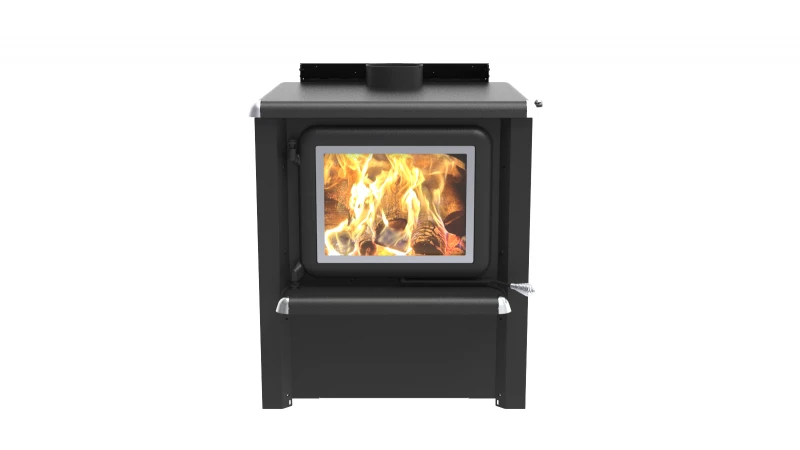

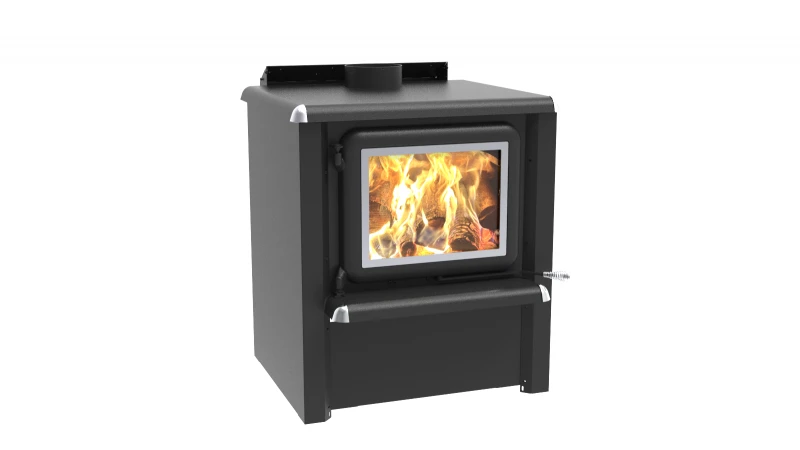

ATM 2500 LX

ATM 2500 LX wood stove, high efficiency CSA B415.1-10 and US EPA Method 28R certified, with chromed corners, handles and trim door.

Heats 1,000 - 2,500 ft²

Output 95,000 BTU

Burn time 5 - 8 hrs

Type of fuel	Wood
Recommended heating area	1000 - 2500 pi²
Combustion length	5 to 8 hours
Maximum output	95 000 BTU
Firebox dimensions	Width 18 ¼" / Height 10 ¾" / Depth 20"
Door opening dimensions	16 ¼" x 10 3/8"
Maximum log length	19"
Exteriors dimensions	Width 29 7/8" / Height 33 1/8" / Depth 30 5/8"
Type of chimney	2100° F.
Exaust pipe diameter	6"
Recommended chimney diameter	6"
Minimum chimney height	12'
Minimum clearances to combustibles	Back 16 1/2" / Side 12" / Corner 10" / Top 84" (measured from floor)
Weight	380 lbs
Standard test - US emissions	US EPA Method 28R
Standard test - Canada emissions	CSA B415.1-10
Warranty	Limited lifetime

MSRP : DETAILS IN STORE

Certifications

J. A. ROBY INC.

490, rue de l'Argon

Québec, Qc Canada G2N 2C9

T. (418) 849-8095 | F. (418) 849-0077

Features

High efficiency CSA B415.1-10 certified appliance
One square cast iron door model
Color: Metallic Black
Chromed corners, handles and trim door
Model: Freestanding
Recommended Heating Area (sq. ft.) 1 000 – 2 500
Heating by convection and radiation
Glass air-wash system
Low clearance to combustible materials
Baffle: Fibre ceramic
Firebox lined with refractory bricks for better heat distribution
Stainless steel secondary air system improving gas combustion
Recommended chimney: 6”
Low emission 1.02 g/h
LHV 79.46%
Log lenght 19”
Mobile home and Novoclimat approved outdoor air intake required and offered in option
Tested as per applicable standards by Intertek
