J. A. ROBY | Model #PBAPR

APOLLO-R

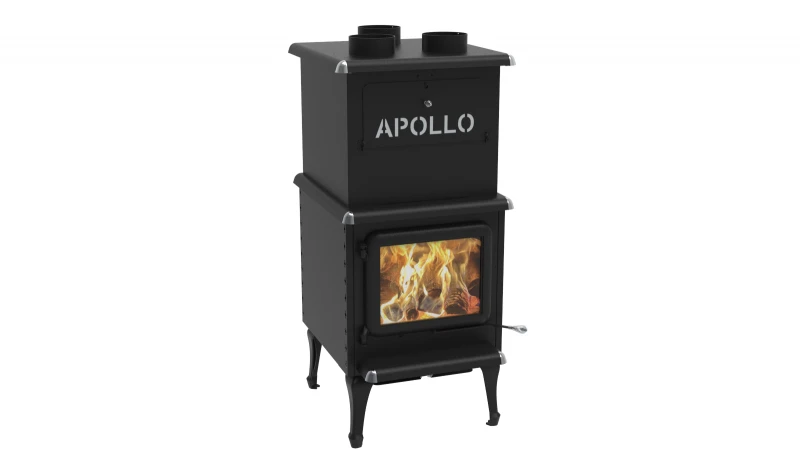

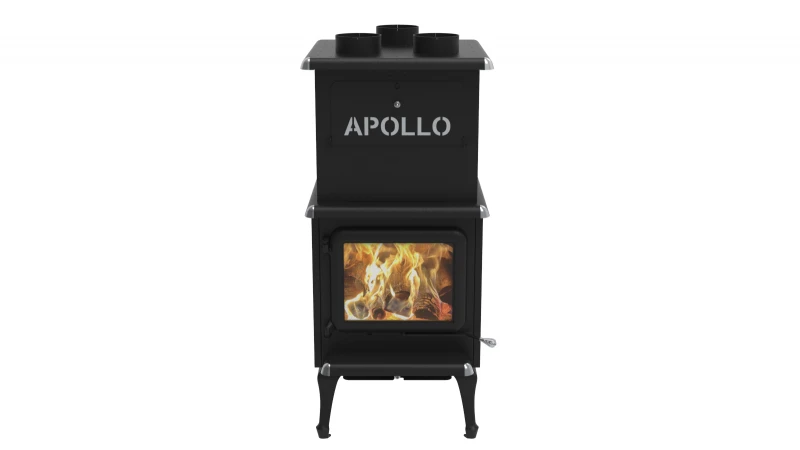

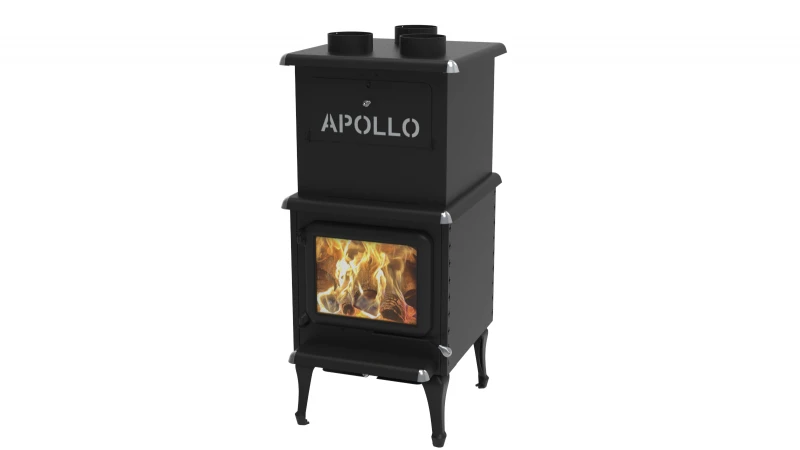

APOLLO-R wood stove, high efficiency US EPA NSPS 2020 certified with heat recovery unit on top

Heats 1,000 - 3,500 ft²
Output 130,000 BTU
Burn time 4 - 14 hrs
Type of fuelWood
Recommended heating area1,000 - 3,500 pi²
Combustion length4 to 14 hours
Maximum output130 000 BTU
Firebox dimensionsWidth 18" / Height 15 1/8" / Depth 22 ½"
Door opening dimensions15 1/8" x 9 ¼"
Maximum log length22"
Exteriors dimensionsWidth 26" / Height 56 ¼" / Depth 33 5/8"
Type of chimney2100° F.
Exaust pipe diameter6"
Recommended chimney diameter6"
Minimum chimney height12'
Minimum clearances to combustiblesBack 11 ¼" / Side 16" / Corner 8 ¾" / Top 84" (measured from floor) / From collar to back 12" / From collar to side 24 ¾
Weight460 lbs
Standard test - US emissionsUS EPA NSPS 2020
WarrantyLimited lifetime

MSRP : DETAILS IN STORE

Certifications

Share the product

Facebook
Email
J. A. ROBY INC.
490, rue de l'Argon
Québec, Qc Canada G2N 2C9
T. (418) 849-8095 | F. (418) 849-0077

FEATURES

  • Model with one square cast iron door
  • High efficiency US EPA NSPS 2020 certified appliance
  • Recommended heating Area (sq.ft.) : 1,000 to 3,500
  • Color: metallic black
  • Model: on legs
  • Blower 460 TH included
  • Convection and radiation heating
  • Self-cleaning system of the glass surface
  • Low clearances to combustible materials
  • Ceramic wool baffle
  • Outdoor air intake
  • Firebox lined with refractory bricks for better heat diffusion
  • Stainless steel secondary air system to improving gas combustion
  • Recommended chimney : 6″
  • Low emissions 1,56 gr/h
  • LHV 77,75%
  • Maximum Logs lenght 22″
  • Mobile home certified
  • Tested as per applicable standards by Intertek

Options

  • Outdoor air intake package kit (ECPAE)
  • Chrome cast iron legs (4)
  • 150 CFM fan
  • 460 CFM blower (VENT460T+)

Description

FEATURES

  • Model with one square cast iron door
  • High efficiency US EPA NSPS 2020 certified appliance
  • Recommended heating Area (sq.ft.) : 1,000 to 3,500
  • Color: metallic black
  • Model: on legs
  • Blower 460 TH included
  • Convection and radiation heating
  • Self-cleaning system of the glass surface
  • Low clearances to combustible materials
  • Ceramic wool baffle
  • Outdoor air intake
  • Firebox lined with refractory bricks for better heat diffusion
  • Stainless steel secondary air system to improving gas combustion
  • Recommended chimney : 6″
  • Low emissions 1,56 gr/h
  • LHV 77,75%
  • Maximum Logs lenght 22″
  • Mobile home certified
  • Tested as per applicable standards by Intertek

Options

  • Outdoor air intake package kit (ECPAE)
  • Chrome cast iron legs (4)
  • 150 CFM fan
  • 460 CFM blower (VENT460T+)
