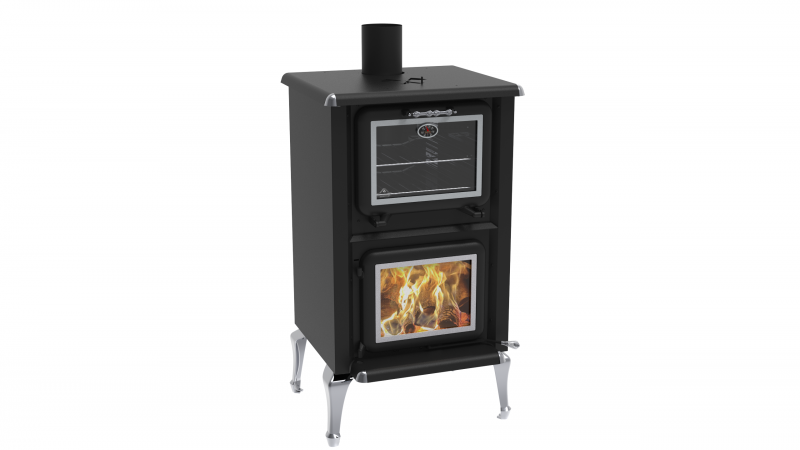

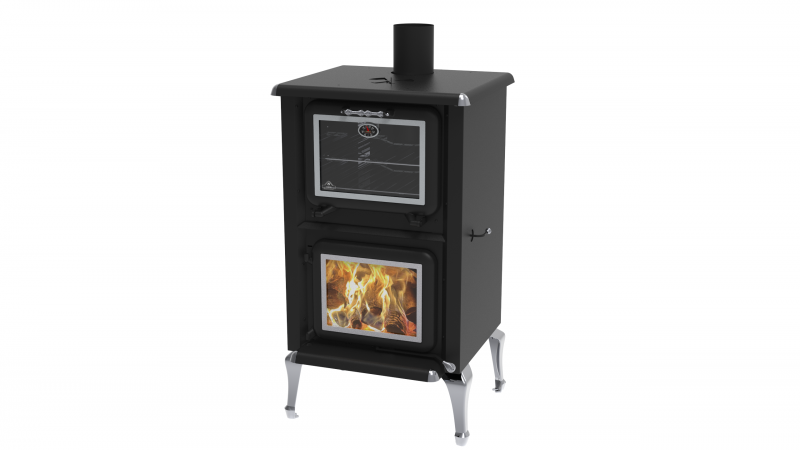

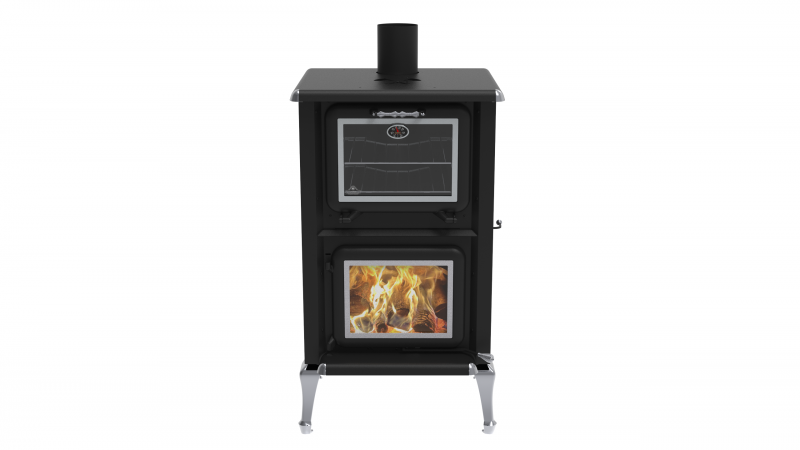

J. A. ROBY | Model #PB2500FLX

2500 F LX

High efficiency wood cookstove CSA B415.1-10 certified, with the oven on top.Which is an intersting advantage when it comes to minimizing space.

Heats 1,000 - 2,500 ft²
Output 95,000 BTU
Burn time 5 - 8 hrs
Type of fuelWood
Recommended heating area1000 - 2500 pi²
Combustion length5 to 8 hours
Maximum output95 000 BTU
Firebox dimensionsWidth 18 ¼" / Height 10 ¾" / Depth 20"
Door opening dimensions16 ¼" x 10 3/8"
Maximum log length19"
Exteriors dimensionsWidth 30 3/8" / Height 51 3/8" / Depth 30 5/8"
Type of chimney2100° F.
Exaust pipe diameter6"
Recommended chimney diameter6"
Minimum chimney height12'
Minimum clearances to combustiblesBack 16 ½" / Side 12" / Corner 10" / Top 84" (measured from floor)
Weight490 lbs
Interior oven dimensionWidth 17" / Height 11 ¾" / Depth 13 ¾
Standard test - US emissionsUS EPA Method 28R
Standard test - Canada emissionsCSA B415.1-10
WarrantyLimited lifetime

MSRP : DETAILS IN STORE

Certifications

Share the product

Facebook
Email
J. A. ROBY INC.
490, rue de l'Argon
Québec, Qc Canada G2N 2C9
T. (418) 849-8095 | F. (418) 849-0077

Features

  • Two cast iron squared doors model
  • High efficiency CSA B415.1-10 certified appliance
  • Recommended heating area (sq. ft.): 1 000 – 2 500
  • Color: Metallic Black
  • Model: Legs
  • Corners, cast iron legs, handle and chromed trim door
  • Glassed oven with thermometer
  • Convection and radiation heating
  • Self-cleaning system of the glass surface
  • Low clearances to combustible materials
  • Ceramic wool baffle
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Recommended chimney: 6”
  • Low emissions 1.02 g/h
  • LHV 79.46%
  • Recommended log lenght: 19”
  • Mobile home certified
  • Tested as per applicable standards by Intertek

Options

  • Outdoor air intake package kit (ECPAE)
  • Additional oven rack for cookstove (CUISINIEREGF)
  • Outdoor air intake (installed in plant) (TCPAE)
  • 150 CFM fan
  • 460 CFM blower with thermodisc (VENT460TH)

Description

Features

  • Two cast iron squared doors model
  • High efficiency CSA B415.1-10 certified appliance
  • Recommended heating area (sq. ft.): 1 000 – 2 500
  • Color: Metallic Black
  • Model: Legs
  • Corners, cast iron legs, handle and chromed trim door
  • Glassed oven with thermometer
  • Convection and radiation heating
  • Self-cleaning system of the glass surface
  • Low clearances to combustible materials
  • Ceramic wool baffle
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Recommended chimney: 6”
  • Low emissions 1.02 g/h
  • LHV 79.46%
  • Recommended log lenght: 19”
  • Mobile home certified
  • Tested as per applicable standards by Intertek

Options

  • Outdoor air intake package kit (ECPAE)
  • Additional oven rack for cookstove (CUISINIEREGF)
  • Outdoor air intake (installed in plant) (TCPAE)
  • 150 CFM fan
  • 460 CFM blower with thermodisc (VENT460TH)
